What is Depth Image?
A depth image, also known as a depth map, is a visual representation of the distance from a sensor or camera to various points in a scene. Each pixel in a depth image contains a depth value, which indicates the relative distance of objects from the sensor.

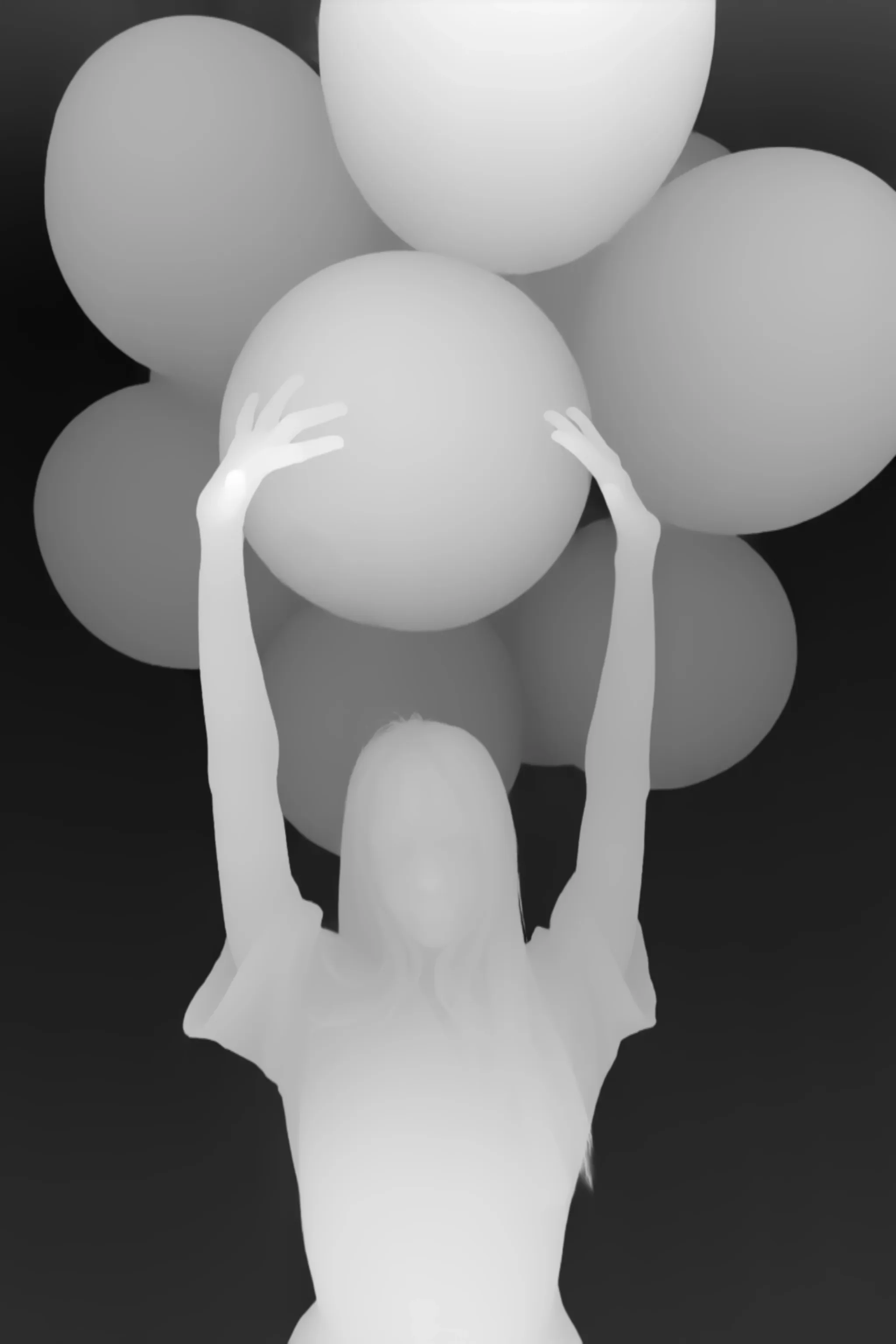

These images are often rendered as grayscale depth images, where shades of gray correspond to distance: lighter shades represent closer objects, while darker shades indicate objects that are farther away.
Depth images can also serve as an intermediate step in generating a point cloud. A point cloud is a collection of 3D coordinates (x, y, z) that represent objects'’ surfaces within the captured scene. By analyzing the spatial coordinates (x, y, z) derived from the depth values, systems can accurately model environments, spatial analysis, detect obstacles, or simulate virtual experiences.
Range Image vs Depth Image
"Depth image" and "range image" are often used interchangeably, but they are actually different.
A range image encodes distance information by capturing the actual distance between the sensor and the surfaces in a scene. It provides a direct measurement of the 3D geometry of objects or environments. It is highly effective for applications that require precise 3D structure mapping, such as environmental modeling or autonomous navigation.
While range and depth images both represent spatial data, their key differences lie in how they measure and represent distance. Range images directly measure the distance from the sensor to a point in the scene, while depth images represent the perpendicular distance from the camera's imaging plane to the object.
Also, range images are more focused on geometry and are orientation-agnostic, providing an objective measure, whereas depth images describe the scene as seen from a specific viewpoint of the camera.
Feature | Range Image | Depth Image |
Distance Measurement | Direct distance to object surfaces | Perpendicular distance from the camera plane |
Perspective | Orientation-agnostic | Perspective-dependent |
Use Cases | Environmental mapping, 3D modeling | Object detection, scene reconstruction |
Uses of Depth Image
Depth image technology has transformed the way we capture and interpret spatial information. This opens the doors to innovation in many fields. Let’s look at some of the common applications.
3D Reconstruction
By providing accurate spatial data, depth images allow algorithms to reconstruct surfaces and geometries. This is particularly useful in fields like virtual prototyping, architectural design, and preserving cultural heritage through digital replicas.
Robotics
In robotics, depth image technology helps robots understand and navigate their environment. Robots use depth data to avoid obstacles, plan efficient paths, and interact with objects. This technology enhances autonomy and reliability, making robots more capable of handling tasks like warehouse management, exploration, and domestic assistance.
AR and VR
Depth images enhance AR and VR experiences by enabling realistic interaction between virtual elements and the physical world. They improve object occlusion, lighting accuracy, and depth perception, making virtual environments more immersive. For example, AR apps use depth data to place virtual objects convincingly into real-world scenes.
Object Detection
Depth image technology improves object detection and remote sensing by adding a spatial dimension to traditional 2D images. It helps systems identify objects more accurately and understand their position in 3D space. This is crucial in areas like surveillance, autonomous driving, and industrial automation, where precision is essential.
Medical Imaging
In healthcare, depth images support the 3D reconstruction of anatomical structures for the human body, aiding in diagnosis, surgical planning, and patient monitoring. For instance, depth-based imaging can provide surgeons with enhanced visualization during minimally invasive procedures.
Smartphone Facial Recognition
Smartphones with depth-sensing cameras enhance biometric security by creating 3D facial depth maps, making it harder to spoof with photos or masks. This technology ensures secure unlocking, app authentication, and payment transactions, offering users a blend of convenience and robust protection.
You might also be interested in learning how depth map is used in the 2D to 3D process
How Do You Create a Depth Image?
Ever wondered how machines perceive depth, giving us incredible 3D models or immersive AR experiences? The secret lies in a variety of ingenious methods for creating depth images. From mimicking human vision to harnessing advanced AI, these techniques are reshaping industries and everyday tech. Here’s a closer look at the most fascinating approaches:
Stereo Vision
Stereo vision is inspired by how human eyes perceive depth. It involves using two cameras positioned at a set distance from each other to capture slightly different perspectives of the same scene. By analyzing the disparity (differences) between the two images, algorithms triangulate the distance to each point in the scene, generating a depth map.
This method is passive, meaning it doesn’t require additional light sources, making it energy-efficient and suitable for outdoor environments. It works particularly well in well-lit areas with plenty of texture, such as urban landscapes or detailed indoor settings.
However, challenges arise with low-texture or repetitive surfaces, such as blank walls or patterned floors, where finding corresponding points between the images can be tricky. Despite this, stereo vision remains one of the most accessible and versatile methods for depth estimation.
ToF (Time-of-flight) Cameras
Time-of-flight (ToF) cameras are like the radar systems of the depth world. They emit light pulses, typically in the near-infrared spectrum, and measure the time it takes for the light to travel to an object and return. Since the speed of light is constant, the round-trip time difference provides a direct measurement of distance. This technology operates on a similar principle to 3D laser sensors, but while lasers scan point by point, ToF captures depth information for an entire image.
This method excels in real-time depth mapping, making it invaluable for applications like gesture recognition, 3D scanning, and facial authentication in smartphones. ToF cameras are less affected by ambient lighting and can handle complex scenes with ease.
However, they face challenges with reflective or absorbent surfaces, which can distort the depth data. Moreover, they require specialized hardware, which can increase costs. Despite these limitations, their compact size and real-time capabilities make them a game-changer in modern technology.
Focus/Defocus
The focus/defocus technique offers a creative way to estimate depth by analyzing image sharpness. When a camera focuses on a specific plane, objects at different distances appear blurred to varying degrees. By capturing multiple images with different focus settings or analyzing blur gradients in a single image, algorithms infer depth information.
This technique is particularly appealing because it doesn’t require specialized sensors—any standard camera can be used. It’s ideal for scenarios where simplicity and cost-effectiveness are priorities.
However, the method relies heavily on scene texture and struggles with low-texture environments, such as blank walls. Also, the computation required to analyze blur patterns can be intensive. Despite these drawbacks, focus/defocus remains an innovative and accessible approach to depth imaging.
Structured Light Scanning
Structured light scanning projects patterns like grids or stripes onto a scene, capturing deformations with a camera. By analyzing these deformations, the system calculates an object's depth, position, and surface details, enabling precise 3D reconstruction. This method is widely used in structured light 3D scanners for accurate spatial analysis.
This technology excels in industrial applications such as quality control, reverse engineering, and 3D modeling, effortlessly capturing intricate details on complex objects. Its pinpoint accuracy makes it a go-to solution for high-precision tasks.
Still, this method shines brightest in controlled lighting conditions, as ambient light or reflective surfaces can disrupt its patterns. Despite these challenges, structured light scanning remains a game-changer for industries demanding meticulous detail and reliability.
Monocular Depth Estimation with AI
Monocular depth estimation brings a fresh approach to depth sensing, using AI to predict depth from a single image. This process leverages Convolutional Neural Networks (CNNs), which are trained on diverse datasets of visual cliques like object size and texture, for supervised learning or stereo images for unsupervised learning, resulting in a depth map that represents distances in pixels.
The main benefit is that monocular depth estimation doesn’t require specialized hardware like multiple cameras. It’s widely used in autonomous driving, robotics, augmented reality, and 3D modeling, enabling AI systems to better interact with their environment. However, its accuracy depends on the quality of training data, and it may struggle in unfamiliar environments. Real-time processing can also demand significant computing power.
Challenges in Depth Image Processing
Depth image processing, while powerful, comes with its share of challenges that demand innovative solutions.
One of the most common issues is noise and incomplete data. Depth sensors can struggle in low-light conditions, reflective surfaces, or environments with excessive interference, leading to gaps or inaccuracies in the depth map. These inconsistencies can affect the quality of 3D reconstructions, object detection, and other applications relying on precise spatial information.
Another significant hurdle is data compression. Depth images often contain a large amount of data, especially in high-resolution formats. Compressing this data without losing critical depth details is a delicate balancing act. Efficient compression is essential for storage, transmission, and real-time processing, but even minor inaccuracies during compression can distort spatial relationships in the reconstructed output.
Real-time rendering adds another layer of complexity. Applications like robotics, AR/VR, and autonomous systems require immediate analysis of depth data to function effectively. This demands powerful hardware and optimized algorithms that can process depth images on the fly, all while maintaining accuracy and minimizing latency.
Overcoming these challenges involves developing advanced sensor technology, robust algorithms, and innovative data handling techniques, ensuring depth image processing can keep up with the growing demands of modern applications.
